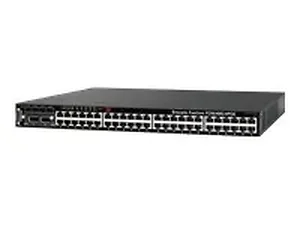

Brocade FCX648S Fastiron Cx 648s 48pt 1gb 2 Port Stack Ac P S

FASTIRON CX 648S 48PT 1GB 2PT STACK AC P/S
The Brocade FastIron CX series of switches provides new levels of performance, scalability, and flexibility required for today's enterprise campus networks. With advanced capabilities, these switches deliver performance and intelligence to the network edge in a flexible[U form factor that helps reduce infrastructure and administrative costs. Utilizing built-in 16 Gbps stacking ports and Brocade IronStack technology, organizations can stack up to eight switches into a single logical switch with up to 384 ports. PoE models support the emerging Power over Ethernet Plus (PoE+) standard to deliver up to 30 watts of power to edge devices, enabling next-generation campus applications.
Product Description Brocade FastIron CX 648S - switch - 48 ports
Device Type Switch - stackable
Form Factor Rack-mountable - 1U
Dimensions (WxDxH) 17.3 in x 15.2 in x 1.7 in
Weight 8.8 lbs
Ports Qty 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate 1 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
Features Modular design, uplink, routing, layer 3 switching, layer 2 switching, DHCP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, manageable, stackable, Weighted Round Robin (WRR) queuing, MAC address filtering, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Brocade IronStack technology, PIM-SM snooping, Remote Fault Notification (RFN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Redundancy Protocol (VSRP) support, Foundry Discovery Protocol (FDP) support, event log, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Network Admissions Control (NAC), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, temperature sensor
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE♊.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE♊.3ak, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3at
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Yes
General
Device Type Switch - stackable
Enclosure Type Rack-mountable - 1U
Width 17.3 in
Depth 15.2 in
Height 1.7 in
Weight 8.8 lbs
Networking
Ports Qty 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate 1 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol OSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, MLDv2, MLD
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
Connectivity Technology Wired
Switching Protocol Ethernet
MAC Address Table Size 32K entries
Features Modular design, uplink, routing, layer 3 switching, layer 2 switching, DHCP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, manageable, stackable, Weighted Round Robin (WRR) queuing, MAC address filtering, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Brocade IronStack technology, PIM-SM snooping, Remote Fault Notification (RFN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Redundancy Protocol (VSRP) support, Foundry Discovery Protocol (FDP) support, event log, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Network Admissions Control (NAC), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, temperature sensor
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE♊.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE♊.3ak, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3at
Expansion / Connectivity
Expansion Slots Total (Free)\ ( 2 ) x XFP 4 ( 4 ) x SFP (mini-GBIC)
InterfacesΜ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - console - 9 pin D-Sub (DB-9) 2 x network stack device - Ethernet 10GBase-CX4 1 x management - RJ-45
Miscellaneous
Encryption Algorithm AES
Authentication Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards Plug and Play, FCC Class A certified, CISPR 22 Class A, EN55022, VCCI Class A ITE, WEEE, RoHS
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Power Redundancy Yes
