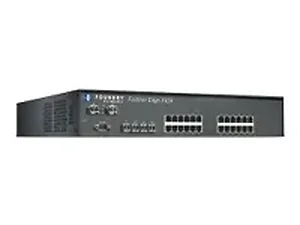

Brocade FESX424-PREM Fastiron Edge X424 24pt 4dp Gig Ethernet 2 Port 10gb Ac F3
Make an offer
Out of Stock
Special Price $8549.21 Regular Price $11541.43
Condition: New
Special Price $8549.21 Regular Price $11541.43
Condition: New
Brocade FESX424-PREM Fastiron Edge X424 24pt 4dp Gig Ethernet 2 Port 1
FASTIRON EDGE X424 24PT 4DP GETH 2PT 10GB AC F3 Organizations continue to strive to be competitively superior and demand network infrastructures be resilient, secure, and do more with less. As requirements to protect, optimize, and grow the enterprise have extended from basic connectivity to a much high level of intelligent service-based infrastructures, the network has evolved to provide an even greater value to the organizations. The Brocade FastIron Edge Switch X series provides greater flexibility, higher reliability, enhanced security, and extensive redundancy for better operational efficiency and faster response to business opportunities today and into the future. The FastIron Edge X series offers a diverse range of switches that meet Layer 2/Layer 3 edge, aggregation, or small-network backbone-connectivity requirements with intelligent network services, including superior quality of service (QoS), predictable performance, advanced security, comprehensive management, and integrated resiliency. It is the ideal networking platform to deliver 10 Gigabit Ethernet. Additionally, the FastIron Edge X series features the benefits of a "pay-as-you-grow" architecture and price-performance value for fixed Ethernet solutions with the addition of a removable, replaceable, load-sharing power supply and 10 GbE modules in a 1.5 Rack Unit (RU) form factor. The FastIron Edge X series can be initially installed using "Small Form Pluggable" (SFP) Gigabit Ethernet modules, then field-upgraded with one or two "10 Gigabit Small Form Factor Pluggable" (XFP) modules, extending the usability of the product. To meet existing and emerging network requirements, the FastIron Edge X series supports advanced Layer 2 features, such as BPDU Guard, Root Guard, and Metro Ring Protocol; Base Layer 3 routing capabilities; complete quality of service (QoS) controls, including prioritization and rate limiting; and the Brocade IronShield for denial of service (Dos) protection. The FastIron Edge X series is also software upgradeable to full Layer 3, supporting the advanced routing protocol BGP4. The extensive feature set supports network requirements ranging from basic connectivity to multicast-based streaming audio/video applications for converged services including Voice over IP (VoIP), with the full Layer 3 upgrade.
| Product Description | Brocade FastIron Edge X X424 - switch - 24 ports |
| Device Type | Switch |
| Form Factor | Rack-mountable - 1.5U |
| Dimensions (WxDxH) | 17.5 in x 19.6 in x 2.6 in |
| Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Empty Slots | 4 x SFP (mini-GBIC) |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP |
| Features | Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | 5 years warranty |
| General | |
| Device Type | Switch |
| Enclosure Type | Rack-mountable - 1.5U |
| Width | 17.5 in |
| Depth | 19.6 in |
| Height | 2.6 in |
| Networking | |
| Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| MAC Address Table Size | 16K entries |
| Features | Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v |
| Expansion / Connectivity | |
| Expansion Slots Total (Free) | 4 ( 4 ) x SFP (mini-GBIC) |
| Interfaces | 24 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management |
| Miscellaneous | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+ |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 60950, IEC950, VCCI Class A ITE, EN55022 Class A, EN50082-1, FCC Part 15, UL 1950 Third Edition |
| Power | |
| Power Device | Power supply - hot-plug / redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operati
