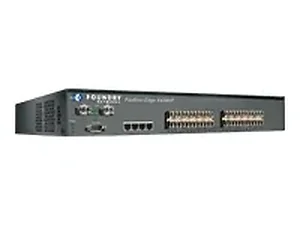

Brocade FESX424HF-PREM Fastiron Edge X424hf Ac P S Fl3

FASTIRON EDGE X424HF AC P/S FL3 Foundry's FastIron Edge Switch X-series (FESX) products provide greater flexibility, higher reliability, enhanced security, extensive redundancy, and a new level of high performance. The FastIron Edge X Series increases a network's return on investment (ROI) and decreases total cost of ownership (TCO) by offering improved functionality, advanced technology, and security in a compact (1.5 Rack Units) form factor at industry-leading prices. The FastIron Edge X Series is the ideal networking platform to deliver 10-Gigabit Ethernet from the edge to the core. The FastIron Edge X Series establishes the next benchmark in delivering the most adaptable feature set, combined with the highest density 10/100/1000, 10/100/1000 with POE, and 100/1000 SFP with 10-GbE upgradeability in a compact form factor. Specifically, the FastIron Edge X Series establishes the industry's leading price-performance value for fixed Ethernet solutions with the addition of removable, replaceable, load-sharing power supply and 10-GbE modules in a 1.5 Rack Unit (RU) form factor. The FastIron Edge X Series can be initially installed using "Small Form Pluggable" (SFP) Gigabit Ethernet ports and then later field-upgraded to support one or two "10-Gigabit Small Form Factor Pluggable" (XFP) modules, extending the usability of the product. To meet existing and emerging network requirements, the FastIron Edge X Series comes standard with advanced Layer 2 features, such as Metro Ring Protocol and Base Layer 3 routing capabilities, complete quality of service (QoS) controls including prioritization and rate limiting, and Foundry's IronShield for denial of service protection. The FastIron Edge X Series is also software upgradeable to full Layer 3 to support advanced routing protocol such as BGP4. The extensive feature set supports network requirements ranging from basic connectivity to multicast-based streaming audio/video applications for converged services including Voice over IP (VoIP), using a software upgrade to full Layer 3. This product is a FastIron Edge X424HF with full L3 SW that includes 20-port 100/1000 SFP, 4-port Combo to support 10/100/1000 Mbps (RJ45) or 100/1000 SFP.

Product Description	Foundry FastIron Edge Switch X424HF - switch - 4 ports
Device Type	Switch
Form Factor	External - 1.5U
Dimensions (WxDxH)	17.5 in x 19.6 in x 2.6 in
Weight	17.6 lbs
Ports Qty	4 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate	1 Gbps
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Empty Slots	20 x SFP (mini-GBIC) / 2 x XFP
Remote Management Protocol	SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS
Features	Routing, layer 3 switching, layer 2 switching, IP-routing, DHCP support, BOOTP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, manageable, MAC address filtering, DDos attack prevention
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v
Manufacturer Warranty	5 years warranty

General
Device Type	Switch
Enclosure Type	External - 1.5U
Width	17.5 in
Depth	19.6 in
Height	2.6 in
Weight	17.6 lbs
Networking
Ports Qty	4 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate	1 Gbps
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol	OSPF, RIP, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, VRRPE
Remote Management Protocol	SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS
Connectivity Technology	Wired
Switching Protocol	Ethernet
MAC Address Table Size	16K entries
Features	Routing, layer 3 switching, layer 2 switching, IP-routing, DHCP support, BOOTP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, manageable, MAC address filtering, DDos attack prevention
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v
Expansion / Connectivity
Expansion Slots Total (Free)	20 ( 20 ) x SFP (mini-GBIC) 2 ( 2 ) x XFP
Interfaces	4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management
Miscellaneous
Encryption Algorithm	MD5
Authentication Method	Secure Shell (SSH), RADIUS, TACACS, TACACS+
Compliant Standards	FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC950, CSA 22.2 No. 950, EN50082-1, FCC Part 15, UL 1950 Third Edition
Power
Power Device	Power supply - hot-plug / redundant - plug-in module
Installed Qty	1 (installed) / 2 (max)
Manufacturer Warranty
