Brocade FESX624-PREM Fastiron Edge X624 24pt Ge 2 Port 10ge Ac F3

_FASTIRON EDGE X624 24PT GE 2PT 10GE AC F_

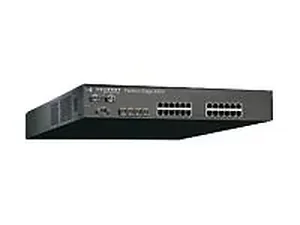

Brocade FastIron Edge X - Switch - L3 - managed - 24 x 10/100/1000 + 4 x shared SFP - rack-mountable
Organizations continue to strive to be competitively superior and demand network infrastructures be resilient, secure, and do more with less. As requirements to protect, optimize, and grow the enterprise have extended from basic connectivity to a much high level of intelligent service-based infrastructures, the network has evolved to provide an even greater value to the organizations. The Brocade FastIron Edge Switch X series provides greater flexibility, higher reliability, enhanced security, and extensive redundancy for better operational efficiency and faster response to business opportunities today and into the future.
The FastIron Edge X series offers a diverse range of switches that meet Layer 2/Layer 3 edge, aggregation, or small-network backbone-connectivity requirements with intelligent network services, including superior quality of service (QoS), predictable performance, advanced security, comprehensive management, and integrated resiliency. It is the ideal networking platform to deliver 10 Gigabit Ethernet.
Additionally, the FastIron Edge X series features the benefits of a "pay-as-you-grow" architecture and price-performance value for fixed Ethernet solutions with the addition of a removable, replaceable, load-sharing power supply and 10 GbE modules in a 1.5 Rack Unit (RU) form factor. The FastIron Edge X series can be initially installed using "Small Form Pluggable" (SFP) Gigabit Ethernet modules, then field-upgraded with one or two "10 Gigabit Small Form Factor Pluggable" (XFP) modules, extending the usability of the product.
To meet existing and emerging network requirements, the FastIron Edge X series supports advanced Layer 2 features, such as BPDU Guard, Root Guard, and Metro Ring Protocol; Base Layer 3 routing capabilities; complete quality of service (QoS) controls, including prioritization and rate limiting; and the Brocade IronShield for denial of service (Dos) protection. The FastIron Edge X series is also software upgradeable to full Layer 3, supporting the advanced routing protocol BGP4. The extensive feature set supports network requirements ranging from basic connectivity to multicast-based streaming audio/video applications for converged services including Voice over IP (VoIP), with the full Layer 3 upgrade.
MAIN SPECIFICATIONS
Product Description Brocade FastIron Edge X switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable - 1.5U
Ports 24 x 10/100/1000 + 4 x shared SFP
MAC Address Table Size 16K entries
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, VRRPE
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP
Features Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE♊.3ae, IEEE 802.1v
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 17.5 in x 19.6 in x 2.6 in
Weight 17.6 lbs
EXTENDED SPECIFICATIONS
General
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable - 1.5U
Ports 24 x 10/100/1000 + 4 x shared SFP
MAC Address Table Size 16K entries
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, VRRPE
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP
Encryption Algorithm MD5
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+
Features Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE♊.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v
Expansion / Connectivity
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - 9 pin D-Sub (DB-9) - management 4 x SFP (mini-GBIC)
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 220 Watt
Miscellaneous
Width 17.5 in
Depth 19.6 in
Height 2.6 in
Weight 17.6 lbs
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, IEC950, VCCI Class A ITE, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15, UL𖜮 Third Edition
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 90%
