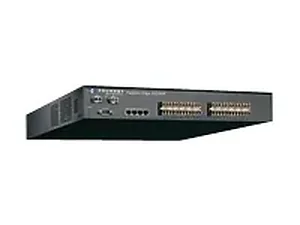

Brocade FESX624HF Fastiron Edge X624hf 24pt Sfp 4dp Ac B3

FASTIRON EDGE X624HF 24PT SFP 4DP AC B3
The FastIron Edge Switch (FES) series provides greater flexibility, higher reliability, enhanced security, extensive redundancy, and expanded resiliency - while simplifying network management complexity and reducing on-going training expenses. The FES increases your network's Return on Investment (ROI) and decreases its Total Cost of Ownership (TCO) by using common sparing components and offering improved functionality through a common feature set controlled by industry standard Command Line Interface (CLI) syntax, all in a compact form factor at industry leading prices. With an advanced hardware platform to provide user-selectable Layer 2 switching - upgradeable to full Layer 3 multiprotocol routing - the FastIron Edge Switch is the ideal networking platform for today's Enterprise wiring closet and server farm applications.
Product Description Foundry FastIron Edge Switch X624HF - switch
Device Type Switch
Form Factor 1.5U
Dimensions (WxDxH) 17.5 in x 19.6 in x 2.6 in
Weight 17.6 lbs
Data Transfer Rate 1 Gbps
Auxiliary Network Ports 4x10/100/1000Base-T/SFP (mini-GBIC)
Empty Slots 20 x SFP (mini-GBIC)
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP
Features Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE♊.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v
Power AC 120/230 V ( 50/60 Hz )
General
Device Type Switch
Enclosure Type 1.5U
Width 17.5 in
Depth 19.6 in
Height 2.6 in
Weight 17.6 lbs
Networking
Auxiliary Network Ports 4x10/100/1000Base-T/SFP (mini-GBIC)
Data Transfer Rate 1 Gbps
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, VRRPE
Remote Management Protocol SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP
Connectivity Technology Wired
Switching Protocol Ethernet
MAC Address Table Size 16K entries
Features Routing, layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE♊.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1v
Expansion / Connectivity
Expansion Slots Total (Free) 24 ( 24 ) x SFP (mini-GBIC)
Interfaces^ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - console - 9 pin D-Sub (DB-9)
Miscellaneous
Encryption Algorithm MD5
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, IEC950, VCCI Class A ITE, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC PartΓ, UL 1950 Third Edition
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 220 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 90%
