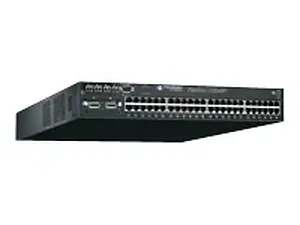

Brocade FGS648P-STK Fastiron Gs 648p Stk 44pt Gig Ethernet 4dp

FASTIRON GS 648P-STK 44PT GETH 4DP
The FastIron GS series access switch family provides enterprise organizations with a flexible and feature-rich solution for building a secure and converged network edge. Upgradeable with 10-Gigabit Ethernet, PoE, and IronStack stacking technology, the FastIron GS series provides enterprises with the cost and operational benefits of a "pay-as-you-grow" architecture. The FastIron GS series delivers the scalability, QoS assurance, resilience, and VoIP-readiness needed to implement a high-value converged solution that can scale to meet future growth at the network edge. An enterprise may initially deploy a standalone FastIron GS switch and later upgrade to IronStack stacking to scale the installation from one to eight stacked units to meet growing user requirements. With its flexible architecture the FastIron GS series offers investment protection, while enabling vital network applications and capabilities such as IP telephony, wireless access, WebTV, video surveillance, building management systems, triple play - voice, video and data, and remote video kiosks in a cost-effective and high-performance compact design. Additionally, the FastIron GS series may be deployed in metro area networks connecting branch offices with 10-GbE uplinks. In this environment, important features include the Brocade Metro Ring Protocol for building resilient ring-based topologies, VLAN stacking, and advance multicast capabilities including IGMP v1/v2/v3 and MLD v1/v2 snooping for controlling multicast traffic for high-bandwidth content delivery.
Product Description Brocade FastIron GS 648P-STK - switch - 48 ports
Device Type Switch
Form Factor External
Dimensions (WxDxH) 17.5 in x 19.6 in x 2.6 in
Ports Qty 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate 1 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Empty Slots 4 x shared SFP (mini-GBIC)
Occupied Slots 2 x XFP
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS
Features Flow control, routing, layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, manageable, MAC address filtering, Broadcast Storm Control, High Availability, SNTP support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE♊.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae
Power AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty 5 years warranty
General
Device Type Switch
Enclosure Type External
Width 17.5 in
Depth 19.6 in
Height 2.6 in
Networking
Ports Qty 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate 1 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol RIP-2, IGMPv2, IGMP
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS
Connectivity Technology Wired
MAC Address Table Size 16K entries
Status Indicators Power, status
Features Flow control, routing, layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, manageable, MAC address filtering, Broadcast Storm Control, High Availability, SNTP support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE♊.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae
Expansion / Connectivity
Expansion Slots Total (Free)\ ( 0 ) x XFP 4 ( 4 ) x SFP (mini-GBIC)
Interfacesδ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x network stack device - Ethernet 10GBase-CX4
Miscellaneous
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+
Compliant Standards FCC Class A certified, CISPR 22 Class A, IEC950, VCCI Class A ITE, EN55022 Class A, EN50082-1, FCC Part 15, UL 1950 Third Edition, RoHS, UL 60950-1, EN 60950-1
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years Technical support - 90 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Op
