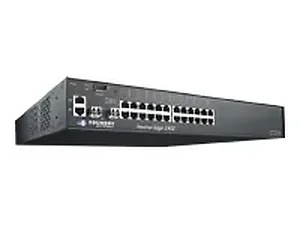

Brocade FES2402-POE Fes2402 Switch 24pt 10 100 Poe 2dp Pts Ac P S Bl3
Make an offer
Out of Stock
Special Price $2965.60 Regular Price $4003.56
Condition: New
Special Price $2965.60 Regular Price $4003.56
Condition: New
Brocade FES2402-POE Fes2402 Switch 24pt 10 100 Poe 2dp Pts Ac P S Bl3
FES2402 SWCH 24PT 10/100 POE 2DP PTS AC P/S BL3 Foundry's FES2402-POE devices provide Power over Ethernet (POE), compliant with the standards described in the IEEE 802.3af specification for delivering in-line power. The 802.3af specification defines the standard for delivering power over existing network cabling infrastructure, enabling multicast-enabled full streaming audio and video applications for converged services, such as, Voice over IP (VoIP), WLAN access points, IP surveillance cameras, and other IP technology devices. POE technology eliminates the need for an electrical outlet and dedicated UPS near IP powered devices. With power sourcing devices, such as Foundry's FES2402-POE, power is consolidated and centralized in the wiring closets, improving the reliability and resiliency of the network. Because POE can provide power over Ethernet cable, power is continuous, even in the event of a power failure.
| Product Description | Foundry FastIron Edge Switch 2402 - switch - 24 ports |
| Device Type | Switch |
| Form Factor | External - 1.5U |
| Dimensions (WxDxH) | 17.5 in x 19.6 in x 2.6 in |
| Weight | 17.6 lbs |
| Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Auxiliary Network Ports | 2x1000Base-T |
| Empty Slots | 2 x mini-GBIC |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP |
| Features | Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, manageable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power Over Ethernet (PoE) | Yes |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | 5 years warranty |
| General | |
| Device Type | Switch |
| Enclosure Type | External - 1.5U |
| Width | 17.5 in |
| Depth | 19.6 in |
| Height | 2.6 in |
| Weight | 17.6 lbs |
| Networking | |
| Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX |
| Auxiliary Network Ports | 2x1000Base-T |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP |
| Connectivity Technology | Wired |
| MAC Address Table Size | 64K entries |
| Status Indicators | Power |
| Features | Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, manageable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Expansion / Connectivity | |
| Expansion Slots Total (Free) | 2 ( 2 ) x mini-GBIC |
| Interfaces | 24 x network node - Ethernet 10Base-T/100Base-TX - RJ-45 2 x network host - Ethernet 1000Base-T - RJ-45 1 x management - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Compliant Standards | FCC Class A certified, CSA, CISPR 22 Class A, EN 60950, EN55022, UL 1950, VCCI Class A ITE, IEC 60950 |
| Power | |
| Power Over Ethernet (PoE) | Yes |
| Power Device | Power supply - hot-plug / redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | |
| Service & Support | 5 years warranty |
| Service & Support Details | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
| Max Altitude Operating | 9840 ft |
