Brocade SI-10K-PREM Serveriron 10k Ch 2 1200w Ac P S 2sfm 1fan Prem

Make an offer
Out of Stock

Special Price $52229.07 Regular Price $70509.24

Condition: New
Brocade
BROCADE
Free Shipping for this Item

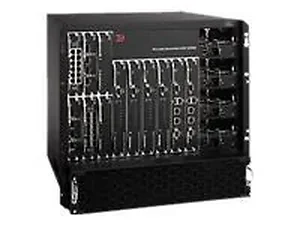

Brocade SI-10K-PREM Serveriron 10k Ch 2 1200w Ac P S 2sfm 1fan Prem

SERVERIRON 10K CH 2 1200W AC P/S 2SFM 1F Brocade ServerIron ADX 10000 - Load balancing device - 10U Brocade ServerIron intelligent application delivery and traffic management solutions have led the industry for over a decade, helping to mitigate costs and prevent losses by optimizing business-critical enterprise and service provider applications with high availability, security, multisite redundancy, acceleration, and scalability - in more than 3000 of the world's most demanding organizations.

ServerIron ADX switch provides Layer 2 through 7 switching performance, enabling highly secure and scalable application service infrastructures. The switch efficiently distributes unified application services by measuring server utilization and connection load in real time, providing visibility and manageability of application performance, security, and service delivery. As a result, applications run more efficiently and with higher availability - streamlining operations, increasing business agility, and significantly reducing costs.


Main Specifications

Product Description Brocade ServerIron ADX 10000 - load balancing device
Device Type Load balancing device
Enclosure Type External - 10U
Dimensions (WxDxH) 17.4 in x 17.5 in x 17.5 in
Network / Transport Protocol TCP/IP, UDP/IP, SMTP, FTP, DNS, POP3, IMAP4
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH-2, CLI
Performance HTTP Throughput : 3000000 connections per second
HTTP Throughput : 20000000 transactions per second
Application throughput : 70 Gbps
IPv6 HTTP throughput : 1000000 connections per second
IPv6 application throughput : 60 Gbps
DNS throughput (stateful) : 4400000 queries per second
DNS throughput (fast stateless) : 18000000 queries per second
SSL throughput : 224000 transactions per second
SSL throughput : 52000 connections per second
SSL throughput : 14.4 Gbps
IPv6 DNS throughput (stateful) : 1900000 queries per second
IPv6 DNS throughput (fast stateless) : 4000000 queries per second
SYN/DDoS protection : 120000000 packets per second
Capacity MAC addresses : 32000
Concurrent SSL connections : 512000
Concurrent connections : 128000000
Concurrent sessions : 256000000
Maximum application cores : 32
VoIP Protocols SIP
Features Load balancing, LDAP support, VLAN support, DoS attack prevention, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, RADIUS support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP)
Power AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty 1 year warranty


Extended Specifications

General
Device Type Load balancing device
Height (Rack Units) 10U
Width 17.4 in
Depth 17.5 in
Height 17.5 in
Networking
Form Factor External
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, SMTP, FTP, DNS, POP3, IMAP4
Routing Protocol IS-IS, RIP-2, VRRP, OSPFv2, OSPFv3, Multiprotocol BGP, VRRPE
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH-2, CLI
Performance HTTP Throughput : 3000000 connections per second
HTTP Throughput : 20000000 transactions per second
Application throughput : 70 Gbps
IPv6 HTTP throughput : 1000000 connections per second
IPv6 application throughput : 60 Gbps
DNS throughput (stateful) : 4400000 queries per second
DNS throughput (fast stateless) : 18000000 queries per second
SSL throughput : 224000 transactions per second
SSL throughput : 52000 connections per second
SSL throughput : 14.4 Gbps
IPv6 DNS throughput (stateful) : 1900000 queries per second
IPv6 DNS throughput (fast stateless) : 4000000 queries per second
SYN/DDoS protection : 120000000 packets per second
Capacity MAC addresses : 32000
Concurrent SSL connections : 512000
Concurrent connections : 128000000
Concurrent sessions : 256000000
Maximum application cores : 32
Features Load balancing, LDAP support, VLAN support, DoS attack prevention, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, RADIUS support, Global Server Load Balancing (GSLB), Link Aggregation Control Protocol (LACP)
Encryption Algorithm SSL
Authentication Method RADIUS, Secure Shell v.2 (SSH2), LDAP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ae, IEEE 802.1ad
IP Telephony
VoIP Protocols SIP
Miscellaneous
Compliant Standards EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, FCC Part 15 B, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1
Power
Power Device Power supply - hot-plug / redundant - plug-in module
Installed Qty 2
Max Supported Qty 4
Voltage Required AC 120/230 V ( 50/60 Hz )
Software / System Requirements
Software Included Brocade Layer 3 Premium
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
New releases update - 90 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 90% (non-condensing)
  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Brocade
  • SI-10K-PREM
  • New
  • 40.00lbs
  • 0 X 0 X 0
  • Feb 20, 2025
  • Jul 22, 2010
